High-Precision 90-Degree Plastic Injection Molded Elbow Connector | Custom OEM Industrial & Automotive Fluid Fittings


Product Overview

This is a high-quality sample of our custom plastic injection moldingservices. This 90-degree elbow connectoris engineered for high-performance applications, such as automotive fluid systems, industrial piping, or pneumatic assemblies.
At JST Mold, we specialize in producing complex functional parts with tight tolerances and superior surface finishes. Whether you provide a 3D design or a physical sample, we provide full-service tooling and mass production solutions tailored to your specific material and durability requirements.


Key Features

  • Precision Engineering:Features a smooth internal flow path and precise external dimensions to ensure leak-proof connections in fluid or air systems.
  • High-Gloss & Durable Finish:Molded with a high-quality surface finish to prevent friction and ensure long-term resistance to wear, heat, and chemical exposure.
  • Complex Geometry:The 90-degree bend and integrated flange design demonstrate our capability in handling complex mold structures and parting lines.
  • Material Versatility:Can be manufactured in a variety of engineering plastics, including PA66 (Nylon), ABS, PP, or PC, depending on the operating environment.
  • Fully Customizable:We offer OEM/ODM services, allowing for custom dimensions, logo engraving, and specific material reinforcements (e.g., glass-fiber filled).


Technical Specifications

Item
Details
Manufacturing Process
Plastic Injection Molding
Product Type
90-Degree Elbow / Fluid Connector / Pipe Fitting
Common Materials
PA66+GF, ABS, POM, PP (Customizable)
Surface Treatment
High Gloss, Matte, or Textured
Application Industry
Automotive, HVAC, Medical, Industrial Fluid Control
Tooling Capability
Single-cavity or Multi-cavity High-Precision Molds
Service Model
OEM / ODM / Custom Manufacturing



There are also other kind of similar part which also called:

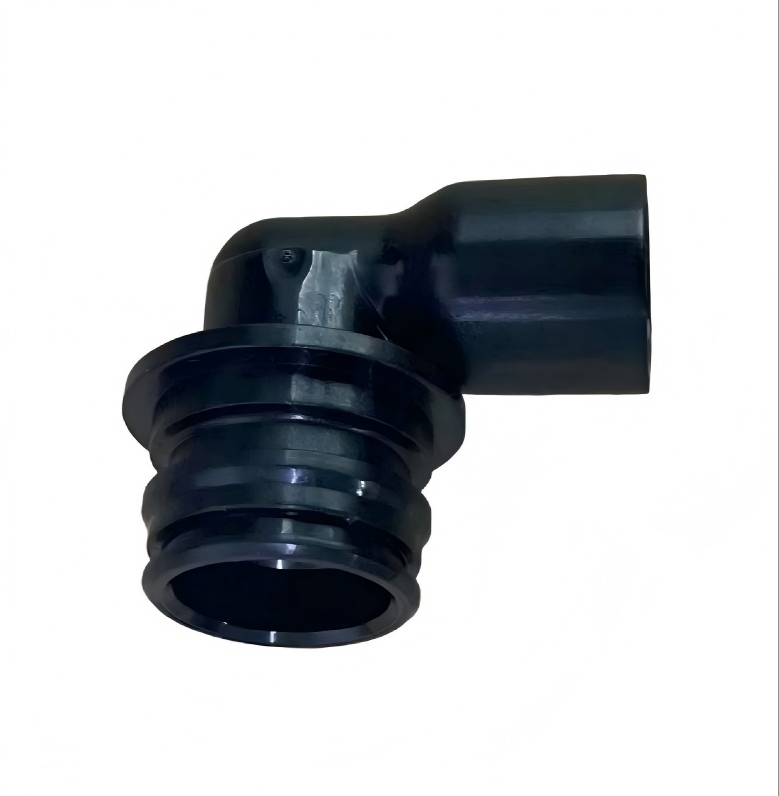

Uponor Q&E PPSU Swivel Nut Elbow Fitting * Engineered for Professional Use: Specifically designed for plumbing and heating installations.
  • System Compatibility: Optimized for use with Uponor Cross-linked Polyethylene (PEX-a) piping systems.
  • Installation Requirement: Must be used in conjunction with Uponor Q&E Evolution Rings.
  • High-Performance Material: Manufactured from premium PPSU (Polyphenylsulfone) plastic for superior durability and thermal resistance.

Why Choose JST Mold?
  1. Professional Tooling Design:We optimize mold designs for better cycle times and part consistency.
  1. Quality Assurance:Strict QC protocols ensure every part meets the required mechanical properties.
  1. Fast Turnaround:From prototype to mass production, we help you speed up your time-to-market. Keywords (Tags)
