2-Cavity Double-Shot (2K) Injection Mold | Two-Color Plastic Tooling for Multi-Material Components
2k injection molding-2 shot molding-2 shot injection molding Technology
Specifications
- Training Duration
- 3 days
- Group Size
- 30-80 people
- Training Mode
- Theory + Practical exercises
High-Precision 2-Cavity Double-Shot (2K) Injection Mold | Custom Two-Color Plastic Tooling for Multi-Material Components
Product Overview

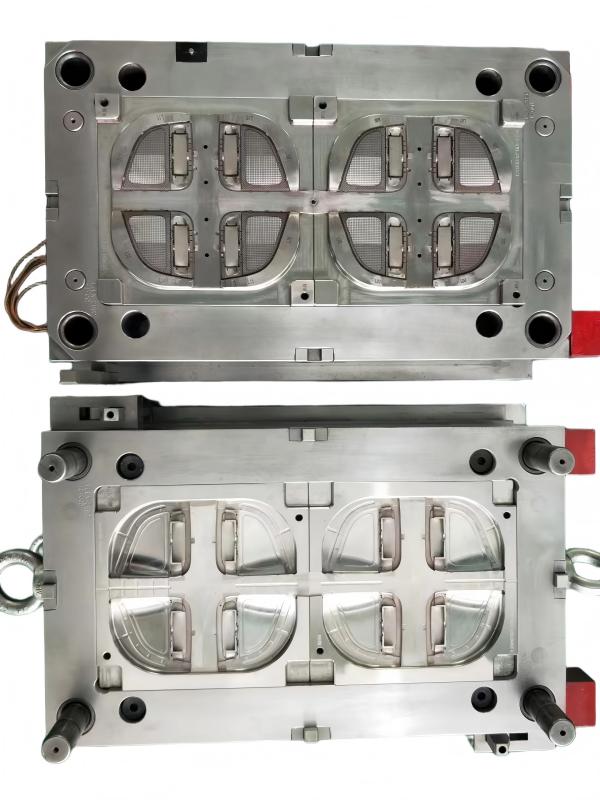

This is a sophisticated 2-cavity double-shot (2K) injection mold, designed for high-efficiency production of multi-material plastic parts. This tooling technology allows two different colors or types of plastic (e.g., ABS + TPE) to be molded into a single component within one machine cycle, ensuring perfect bonding and structural integrity.
At JST Mold, we are experts in complex 2K / Two-Shot molding. This 2-cavity mold features high-precision sealing surfaces to prevent color bleeding and advanced mechanical movements to handle material transitions. It is an ideal solution for automotive buttons, ergonomic handles, and high-end consumer electronic housings that require both aesthetics and functional performance.
Key Features
- Advanced 2K / Double-Shot Technology:Enables the integration of two materials/colors in one shot, eliminating the need for secondary assembly and providing a premium, seamless finish.
- 2-Cavity High Efficiency:Optimized 2-cavity layout balances production speed with extreme dimensional consistency across both parts.
- Precision Sealing Design:Engineered with micron-level tolerances on sealing faces to ensure zero flash and clear-cut color separation lines.
- Complex Core/Cavity Movement:Designed for compatibility with rotary-table or transfer-type 2K injection machines, featuring robust mechanisms for long-term reliable operation.
- Optimized Hot Runner System:Equipped with a balanced hot runner manifold to ensure uniform plastic flow and temperature control for both materials.
Technical Specifications
Item | Details |
Mold Type | Two-Color / Double-Shot (2K) Mold |
Cavity Count | 2-Cavity(Produces 2 complete parts per cycle) |
Compatible Materials | ABS+TPE, PC+ABS, PP+TPU (Multi-material bonding) |
Tooling Steel | Hardened S136, 1.2344, or NAK80 (High-Precision Steel) |
Runner System | Precision Hot Runner (Yudo/Mold-Master/Husky) |
Mold Life | 500,000 to 1,000,000 shots |
Standard Compliance | Automotive & Electronics Industry Standards (IATF 16949) |
Why Choose JST Mold for 2K Tooling?
- Expert 2K Engineering:We specialize in the complex design required for double-shot molds, including perfect material compatibility analysis and overmolding bond strength optimization.
- Micron-Level Accuracy:Our high-speed CNC and mirror EDM processing ensure that the intricate meeting points of two materials are flawless.
- Comprehensive Trial & Validation:Every 2K mold undergoes rigorous trial cycles (T1-T3) on our in-house 2-color machines to ensure it is production-ready for the client.
Keywords
Double-shot injection mold, 2K plastic mold, Two-color injection tooling, 2-cavity 2K mold, Overmolding tool manufacturer, Custom two-shot molding, JST Mold precision tooling, Multi-material plastic parts.
