Injection Molding
Precision Tooling | Multi-Loop Cooling
Production-Ready Precision Injection Mold | JST Mold High-Performance Tooling for Global Export | High-Performance Technical Injection Mold with Advanced Thermal Management | JST Mold Engineering Excellence
Specifications
- Material:
- PA66+GF / PBT / PC+ABS (Engineering Grade)
- Process:
- High-Precision Injection Molding (High-Volume Production)
- Mechanism:
- Heavy-Duty Slide / Hydraulic Core-Pulling System
- Tolerance:
- +/- 0.05mm (Critical Dimension & Flash Control)
- Surface Finish:
- VDI 3400 / SPI-A2 Mirror Polish
- Mold Steel:
- 1.2344 ESR / S136 (Hardened HRC 48-52)
- Quality Control:
- 1M+ Shots Warranty / CPK > 1.67 / CMM Report
Product Description:
Production-ready precision mold featuring an advanced multi-circuit thermal management system for optimized cycle times. Engineered with premium ESR steel and DLC-coated guidance to ensure maximum uptime and dimensional stability in Tier-1 manufacturing environments. Optimized for zero-flash production and seamless automated integration.
Strategic Engineering: From Mold Trial Success to Global Shipment
This high-complexity injection mold represents the final stage of JST Mold’s rigorous manufacturing and validation process. Having successfully passed all mold trials (T1-T3) with approved samples, the tool has undergone professional deep cleaning, final technical inspection, and full wiring for immediate "plug-and-play" operation. Specifically engineered for Tier-1 automotive and industrial sectors, this mold is now ready for secure packaging and global export, ensuring our partners receive a production-ready solution that minimizes setup time and maximizes factory uptime.
Technical Mastery in Complex System Integration

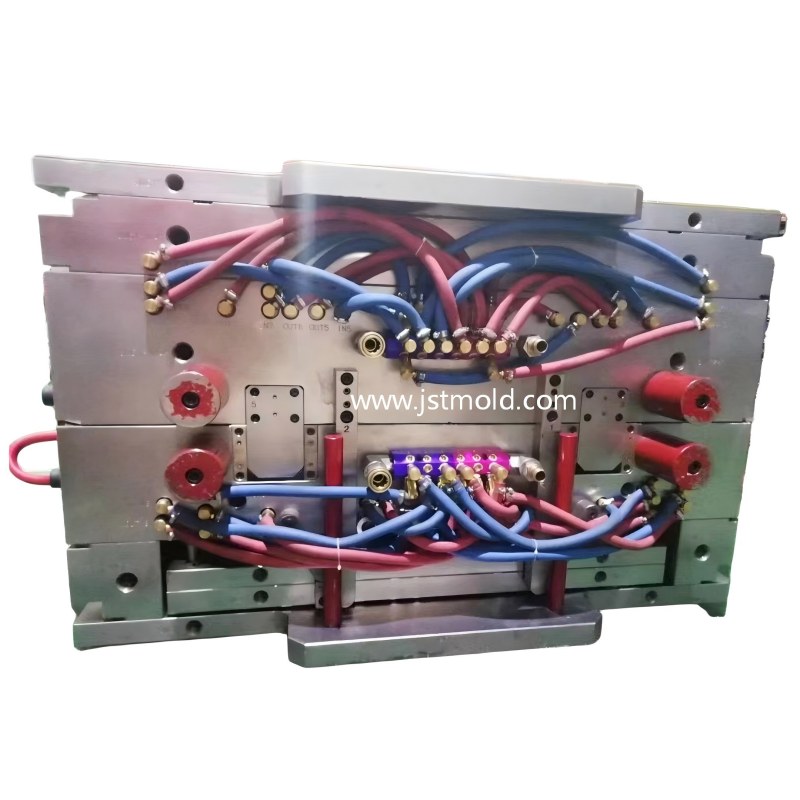

The intricate network of high-flow cooling lines and electrical connectors shown here demonstrates JST Mold’s expertise in advanced thermal management and hot runner integration. Our engineering team utilizes precision-balanced manifolds to ensure uniform material flow and rapid heat dissipation across large surface areas. Constructed with premium hardened tool steels (HRC 48-54), this mold is built for long-term industrial reliability. Every component is meticulously checked to meet IATF 16949 quality standards, ensuring that micron-level tolerances and Class-A surface requirements are maintained throughout high-volume mass production cycles.
Efficiency-Driven Logistics and Guaranteed Delivery
At JST Mold, we understand that "time is money" in modern manufacturing. Our commitment to fast lead times extends from initial DFM analysis to final shipment. We offer personalized customization for every project, ensuring the tool is compatible with your specific injection molding machines and automated systems. By providing a streamlined turnkey service, we guarantee on-time delivery and provide full technical documentation for every mold we ship. Our goal is to empower our global clients to move from design validation to market-ready production with total confidence in their high-precision supply chain.
Technical Specifications Overview
- Product Status: Mold Trial OK / Cleaned & Wired / Ready for Packaging
- Tooling Category: High-Performance Industrial & Automotive Injection Mold
- System Features: Integrated Multi-Zone Cooling & Advanced Hot Runner Manifolds
- Material Compatibility: PC/ABS, High-Impact PP, PA66+GF, or Reinforced Resins
- Steel Grade: Premium Hardened Tool Steel (1.2344, S136, 718H)
- Accuracy Level: Micron-level dimensional registration within +/- 0.01mm
- Service Model: Full Turnkey OEM/ODM Design, Tooling, and Mass Production Support
- Delivery Performance: Rapid Prototyping and Fast-Track Global Shipping Schedules
