High-Precision Multi-Stepped Guide Pillars & Core Pins | Technical Tooling Components for Automotive Molds by JST Mould
Technical Brief: Mastering Structural Guidance and Precision Locating

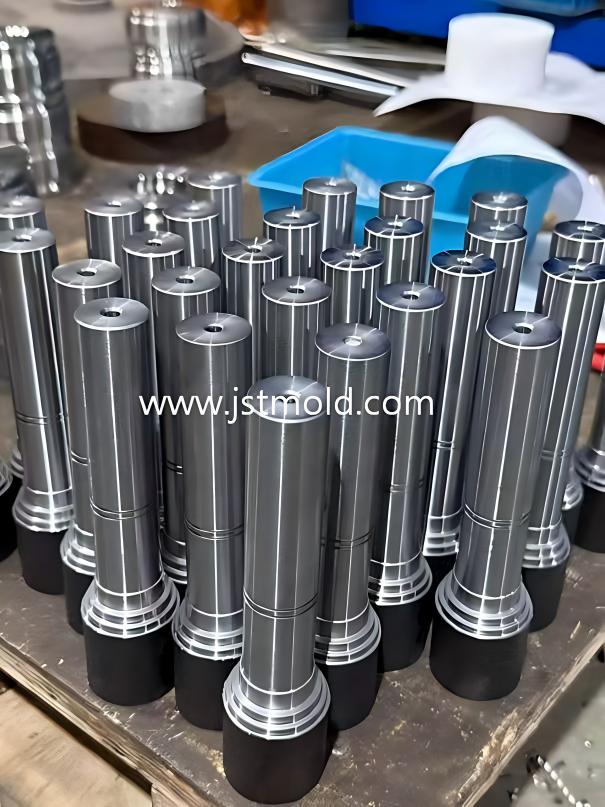

In the demanding environment of high-pressure injection molding, the alignment of the mold halves depends entirely on the integrity of the guide system. These multi-stepped guide pillars and core pins from JST Mould are a masterclass in high-accuracy cylindrical engineering. Designed for Tier-1 automotive and heavy-duty industrial molds, these components must withstand intense lateral forces while maintaining absolute concentricity. We specialize in producing technical guide elements that minimize friction and prevent core-shift, ensuring the long-term repeatability of your high-volume production lines.
Technical Mastery & Manufacturing Innovation Highlights
Micron-Level Stepped Geometry:
- Each pillar features multiple precision-turned diameters with seamless transitions. JST Mould utilizes advanced CNC multitasking centers to ensure that each "step" is perfectly concentric within +/- 0.005mm, guaranteeing a flawless press-fit into the mold base.
Integrated Cooling & Assembly Ports:
- As shown by the precision-bored center holes, our pins are engineered to facilitate internal cooling or secondary mechanical actuation. This technical detail is vital for maintaining thermal stability in deep-cavity molding, reducing cycle times and preventing part warpage.
Superior Surface Hardness & Low-Friction Finish:
- To ensure a lifespan of over 1,000,000 cycles, these components are manufactured from premium tool steels (such as H13, S136, or NAK80) and vacuum-hardened to HRC 50-54. Our technical polishing process achieves a low Ra roughness, reducing the need for excessive lubrication and preventing galling during high-speed operation.
Verified Dimensional Traceability:
- Every batch of guide components undergoes rigorous metrology verification. We provide full 3D CMM inspection data and material certifications, ensuring that JST Mould components are "plug-and-play" ready for global tool assembly in Europe and North America.
JST Mould: Your Strategic Partner for High-Performance Tooling
Engineering Consulting (DFM):
- We don't just follow drawings. Our team reviews your guidance system designs to optimize for wear resistance and ease of maintenance, reducing the total cost of mold ownership.
Guaranteed Fast-Track Delivery:
- We understand that guide components are often "critical path" items. JST Mould offers industry-leading lead times for both standard and bespoke technical pins, moving your project from T1 to mass production without delays.
Global Tier-1 Reliability:
- Operating under strict IATF 16949 quality protocols, we provide consistent, zero-defect tooling assets. JST Mould is the trusted source for international OEMs seeking European-standard precision with high-speed manufacturing agility.
Quick Technical Performance Specs
Component Category: Precision Guide Pillar / Stepped Core Pin / Locating Stud
Application Industry: Automotive Molds, Industrial Die-Casting, Medical Tooling
Manufacturing Process: High-Speed Precision Turning, Boring, and Grinding
Steel Material Grade: Premium Hardened Tool Steel (S136, 1.2344, NAK80, 718H)
Precision Tolerance: Micron-level concentricity and diameter within +/- 0.005mm
Surface Finish: Fine Technical Machining / Low-Friction Polish
Service Model: Custom Technical Component Fabrication and Global Export
Mold Life Rating: Designed for High-Volume Production (1M+ Shots)
