First Aid & Pharmacy Case Injection Mold | Medical Storage Box Tooling
Custom injection mold solution for first-aid, pharmacy and medical storage cases, covering rigid box bodies, hinged lids, integrated handles, snap-fit locking features and multi-component assemblies. JST Mould supports DFM, mold design, tooling manufacture and mold trials for customers purchasing the mold rather than finished plastic cases.
Specifications
- Typical Materials:
- PP / ABS / other engineering plastics according to application
- Mold Configuration:
- Single- or multi-cavity according to annual volume
- Part Features:
- Rigid body, hinged lid, handle and locking mechanism
- Tooling Focus:
- Alignment, hinge design, snap fit, ribbing and warpage control
- Molding Process:
- Precision injection molding
- Project Scope:
- Mold design, manufacturing, trial and sample validation
- Supply Option:
- Injection mold only or tooling project support
- Application:
- First-aid, pharmacy and medical storage cases
First Aid & Pharmacy Case Injection Mold for Medical Storage Boxes
First-aid, pharmacy and medical storage cases may look simple from the outside, but the mold design must coordinate multiple functional features such as the rigid box body, lid, hinges, handle, locking mechanism and assembly fit.
For customers purchasing the injection mold rather than finished plastic cases, the key is not only part appearance. The tooling must also provide stable filling, controlled warpage, reliable hinge and snap-fit function, and consistent alignment between the lid and base.
Key Mold Design Challenges for First-Aid and Pharmacy Cases
- Large flat surfaces with potential warpage risk
- Lid-to-base alignment and assembly consistency
- Living hinge or mechanical hinge design
- Snap-fit and front locking mechanism performance
- Integrated or separately molded handle geometry
- Rib design for stiffness without excessive sink marks
- Parting line and ejector layout
- Balanced filling for large box-shaped components
A successful mold must balance these structural requirements while remaining practical for production, maintenance and mold trial adjustment.
Typical Tooling Features
- Rigid box body and lid tooling
- Hinged lid structure
- Snap-fit or front-locking features
- Integrated or separate handle components
- Rib and reinforcement design
- Controlled parting lines and ejection
- Single- or multi-cavity configuration according to production volume

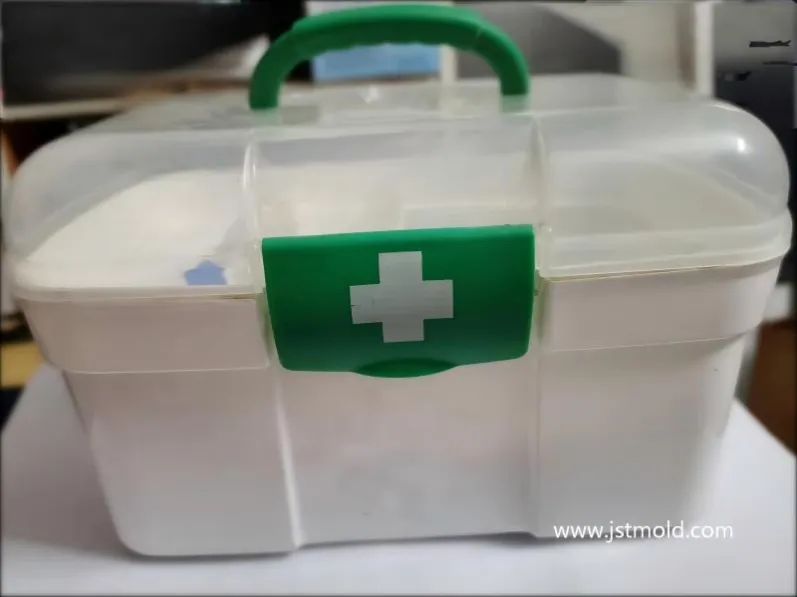

Reference medical storage case showing the body, lid, handle and locking features relevant to mold design.
Mold-Only Projects Welcome
Customers may purchase the injection mold only. JST Mould can support mold design, manufacturing, mold trials, sample validation and export preparation for installation at the customer's molding facility.
If only reference photos and approximate dimensions are available at the early stage, our engineering team can first review the project requirements and advise what 2D/3D product data will be needed before final mold design.
How JST Mould Supports Medical Storage Case Tooling
- DFM review before tooling release
- Mold structure and parting-line evaluation
- Gate, runner and filling review
- Hinge, snap-fit and locking feature assessment
- Mold steel and expected tool life planning
- Mold manufacturing and trial
- Sample inspection and validation support
- Export preparation for mold-only projects
Typical Applications
- First-aid cases
- Pharmacy storage boxes
- Medical accessory cases
- Healthcare storage containers
- Portable plastic equipment cases
- Custom rigid plastic boxes with hinges and locks
Technical Summary
Item | Typical Requirement |
|---|---|
Product Type | First-aid / pharmacy / medical storage case |
Typical Materials | PP / ABS / engineering plastics according to application |
Tooling Type | Custom injection mold |
Key Features | Lid, hinge, handle, locking mechanism, ribs |
Critical Issues | Warpage, alignment, snap fit, filling balance |
Mold Configuration | Single or multi-cavity according to volume |
Project Scope | DFM, design, mold making, trial, sample validation |
Supply Option | Mold-only projects supported |
Need a Mold for a First-Aid or Pharmacy Case?
If you are developing a first-aid box, pharmacy case or similar rigid plastic storage product, send us your 2D/3D data, reference photos, approximate dimensions, material requirements and expected annual volume.
If your project is still at the concept stage, we can first review the available information and advise what data is needed for tooling evaluation and quotation.
FAQ
Can JST Mould supply the injection mold only?
Yes. JST Mould can support mold-only projects, including mold design, manufacturing, mold trials, sample validation and export preparation for installation at the customer's molding facility.
Can you quote a first-aid case mold from a reference photo?
A preliminary project review may be possible from reference photos and approximate dimensions. Final mold design and accurate quotation normally require confirmed product dimensions and preferably 2D or 3D CAD data.
What materials are commonly used for first-aid or pharmacy cases?
PP and ABS are commonly considered for rigid plastic storage cases, while the final material should be selected according to impact resistance, hinge requirements, appearance and end-use conditions.
Can the mold include hinges, handles and locking features?
Yes. Depending on the product design, the tooling can be developed for living hinges, mechanical hinge features, integrated or separate handles, snap fits and front locking mechanisms.
What information is needed for quotation?
Please provide available 2D/3D drawings, reference photos, approximate dimensions, target material, expected annual volume, surface requirements and whether you need the mold only or additional molding support.
