Injection Molding

Structural Component Mold | Large-Format Precision

Engineering Case Study: Large-Format Precision Injection Mold for Automotive Structural Components | JST Mold Heavy-Duty Solutions

Specifications

Target Material:
PP+LGF / PC-ABS (Structural Engineering Grade)
Tooling Grade:
SPI Class 101 (1M+ Cycles, Export Grade)
Mold Steel:
1.2738HH / 1.2344 (Pre-hardened HRC 34-38)
Gating System:
Multi-Point Sequential Valve Hot Runner
Tolerance Control:
+/- 0.15mm (Large-Scale Profile Accuracy)
Cooling Strategy:
High-Flow Thermal Circuits for Rapid Cycle Times
Quality Protocol:
PPAP Level 3 / 100% CMM Scan / Fitment Validation

Product Description:

Engineering-grade large-format mold optimized for complex automotive structural modules. Features a high-rigidity structure and sequential gating system to ensure zero-weld line aesthetics and superior structural integrity. Designed for long-term dimensional stability and high-volume production efficiency in Tier-1 environments.



Strategic Engineering Brief: High-Complexity Tooling for Global Automotive OEMs

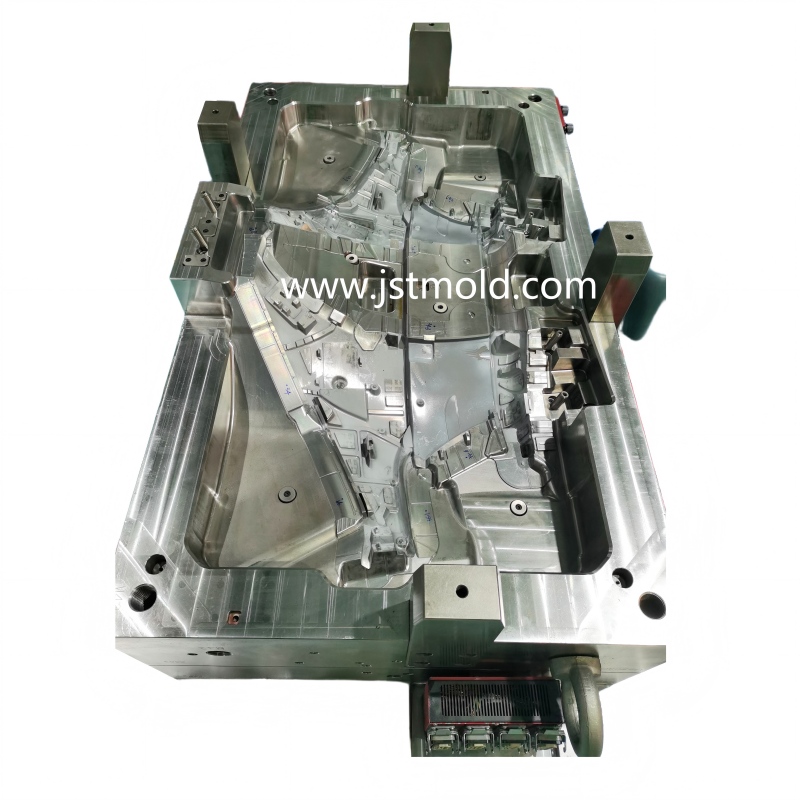

In the high-stakes automotive industry, structural integrity and dimensional stability are non-negotiable. This massive, precision-engineered mold cavity from JST Mold represents the pinnacle of heavy-duty injection tooling. Designed specifically for complex interior structural modules—such as instrument panel carriers, door module substrates, or center console frames—this tool handles the dual challenges of deep-draw geometry and longitudinal precision. We specialize in providing Tier-1 automotive suppliers with monolithic tooling solutions that translate the most ambitious 3D designs into robust, high-volume production realities.


Technical Engineering & Machining Excellence

  • Complex 3D Geometric Mastery: This mold cavity features a sophisticated array of reinforcement rib patterns, integrated mounting bosses, and precision-molded apertures. Our engineering team utilizes high-speed 5-axis CNC machining to ensure that every intricate feature is rendered with micron-level accuracy, facilitating perfect "plug-and-play" assembly on the vehicle line.

  • Advanced Deep-Draw Molding Strategy: Designed to facilitate optimal plastic flow into deep, complex vertical walls. Our Design for Manufacturing (DFM) approach incorporates optimized venting and draft angle strategies, preventing vacuum-induced part deformation and ensuring a flawless surface finish from the first T1 trial.

  • Integrated Hot Runner & Thermal Management: Equipped with a premium multi-drop hot runner system (interface visible on the side) to ensure balanced material distribution across the large surface area. This results in uniform part density, zero material waste, and exceptional dimensional stability.

  • High-Grade Hardened Steel Durability: Constructed from premium tool steels like 1.2738H or 718H, hardened to HRC 48-52. This material choice guarantees a production life of over 1,000,000 shots while maintaining the structural rigidity required under the massive clamping forces of 1500T+ injection machines.



Global Partnership: Faster Lead Times and Bespoke Customization


JST Mold is your strategic partner for rapid innovation in the global supply chain. We understand that "Speed-to-Market" is your most critical competitive advantage.

  1. Fast-Track Tooling Fabrication: Leveraging our massive in-house machining capacity, we offer rapid T1 sample delivery, moving your project from initial design to production-ready status ahead of schedule.

  1. Personalized Technical Customization: Every project is tailored to your specific resin requirements and machine specifications. We provide specialized surface texturing and integrated branding options to meet OEM aesthetic standards.

  1. Tier-1 Quality Compliance: Every tool undergoes a rigorous 3D CMM inspection and full validation trial. We strictly adhere to IATF 16949 and ISO 9001 protocols, ensuring our molds are global-ready for immediate high-volume production in any international facility.



Technical Specifications At-a-Glance

  • Component Category: Extra-Large Precision Mold Cavity / Heavy-Duty Tooling
  • Primary Application: Automotive Dashboards, Structural Interiors, Large Industrial Housings
  • Manufacturing Process: High-Precision Multi-Axis CNC Machining & High-Speed EDM
  • Steel Material: Premium Hardened Tool Steel (1.2738H, 718H, 1.2344, or S136)
  • Machining Tolerance: Micron-level precision within +/- 0.015mm
  • Surface Quality: Fine Technical Finish / Class-A Texture Ready
  • Mold Life: Rated for High-Volume Production (1,000,000+ Shots)
  • Compatibility: Large-Tonnage Injection Molding Systems (1000T - 3000T)
