Structural GF Automotive Parts | High-Wear Precision
High-Strength Glass Fiber (GF) Reinforced Automotive Technical Components | JST Mold Engineering Excellence
Specifications
- Material:
- PA66+GF30 / PA6+GF50 (High-Performance Reinforced Grade)
- Process:
- Precision Molding (Optimized for Fiber Flow & Anti-Abrasion)
- Mechanism:
- Lateral Slides / Hydraulic Core-Pulling System
- Tolerance:
- +/- 0.10mm (Strict Dimensional Stability
- Surface Finish:
- VDI 3400 Ref. 24-27 (Functional Matte)
- Mold Steel:
- 1.2344 ESR / H13 (Hardened HRC 48-52 for Extreme Wear)
- Quality Control:
- Fiber Orientation Analysis / CPK > 1.67 / 1M+ Shots
Product Description:
High-strength structural module engineered for high-percentage glass-fiber plastics. Features advanced ESR-grade steel to counteract abrasive GF materials, ensuring 1M+ shot longevity. Optimized for zero-warpage and precise mounting alignment, meeting rigorous Tier-1 chassis and engine bay performance standards.
Mastering High-Performance Material Engineering for Automotive Systems

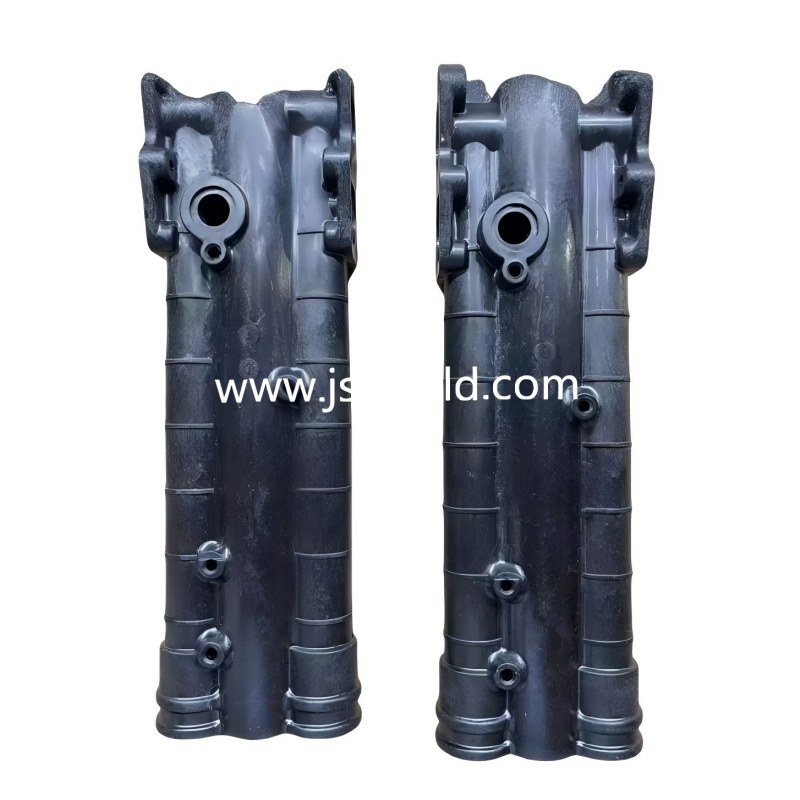

This pair of precision-molded components represents JST Mold’s expertise in processing glass-fiber (GF) reinforced engineering plastics for the global automotive sector. Specifically designed for demanding environments like engine bays and structural assemblies, these long-stroke parts are engineered to provide exceptional rigidity, high heat resistance, and superior dimensional stability. By utilizing materials such as PA66+GF30 or PP+GF, we deliver components that replace metal parts, offering significant weight reduction without compromising on mechanical strength or long-term durability.
Technical Innovation in GF-Reinforced Molding
Molding glass-fiber reinforced parts requires a deep understanding of fiber orientation and thermal shrinkage. At JST Mold, we utilize advanced Mold Flow simulation to optimize gating systems and cooling layouts, effectively eliminating the common challenges of warping and surface fiber-floating in long-format parts. These components feature integrated mounting ports, reinforced longitudinal ribs, and precision-engineered apertures that maintain micron-level accuracy. As a strategic partner for Tier-1 automotive suppliers, we ensure every part meets rigorous safety and performance standards through our state-of-the-art technical tooling.
Personalized Customization and Guaranteed Fast Lead Times
We understand that precision and speed are the pillars of the automotive supply chain. JST Mold offers fully personalized customization for every project, providing expert DFM (Design for Manufacturing) analysis to optimize your GF-reinforced designs for mass production. Our integrated facility allows for a "fast-track" manufacturing model, delivering high-precision T1 samples and moving to high-volume production with industry-leading efficiency. We guarantee our lead times and strictly adhere to project milestones, helping our global partners launch new vehicle programs on schedule and with total confidence in quality.
Technical Specifications Overview
- Product Category: High-Strength GF-Reinforced Technical Component / Structural Housing
- Primary Application: Automotive Engine Systems, Fluid Manifolds, Structural Brackets
- Material Specification: Glass Fiber Reinforced Nylon (PA66+GF) or Polypropylene (PP+GF)
- Engineering Features: Longitudinal reinforcement ribs, multi-port integration, heat-stable structure
- Precision Tolerance: Strict dimensional stability maintained within +/- 0.01mm
- Surface Finish: Industrial Technical Matte Finish / Texture Ready
- Service Model: Full Turnkey OEM/ODM Design, Tooling, and Mass Production
- Delivery Commitment: Rapid T1 Prototyping and Guaranteed Mass Production Schedules
