Rapid Prototype
Automotive Structural Core | Monolithic Complex Geometry
High-Precision Monolithic Injection Mold Core for Complex Automotive Structures Prototyping | JST Mold Engineering Excellence
Specifications
- Tooling Type:
- High-Precision Rapid Prototype / Low-Volume Production
- Steel Grade:
- P20 / 1.2311 (Pre-hardened) or 7075 Aluminum for accelerated T0
- Processing:
- 5-Axis High-Speed CNC Machining & Precision EDM
- Feature Density:
- Monolithic integration of high-density ribs and complex undercuts
- Tolerance:
- +/- 0.05mm (Critical feature positioning accuracy)
- Surface Finish:
- SPI-B2 / VDI 3400 Ref. 24 (Functional engineering finish)
- Quality Control:
- 100% CMM Validation & 3D Scan comparison to CAD data
Product Description:
Advanced monolithic mold core engineered for the rapid prototyping of complex automotive structural modules. This high-precision tooling allows for the validation of intricate mechanical designs using production-grade resins, ensuring high fidelity in functional testing and assembly fitment while significantly reducing the lead time for Tier-1 engineering cycles.
Engineering Superiority Through Monolithic Precision Machining

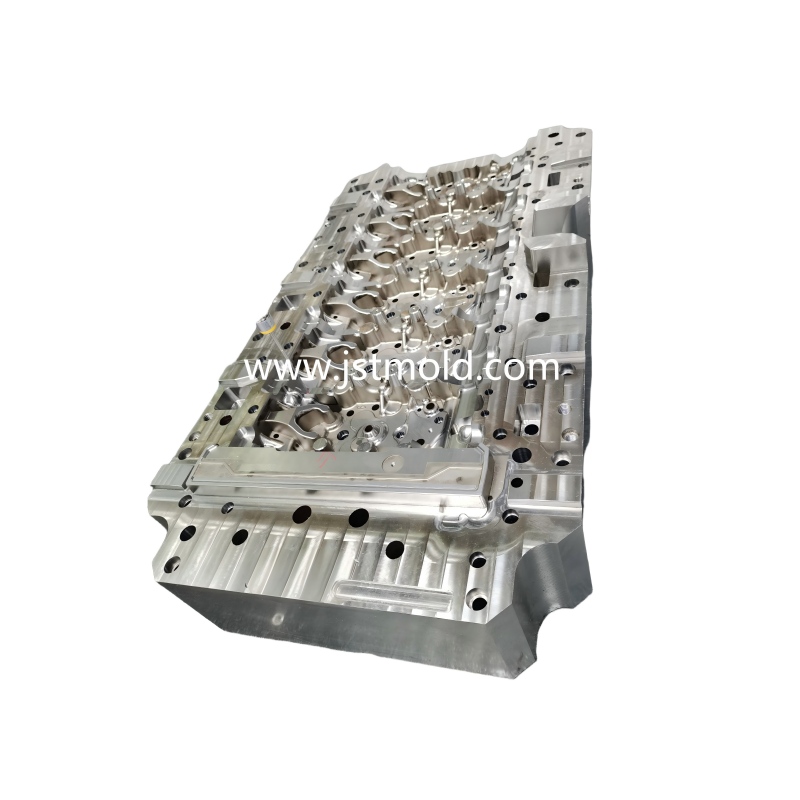

This massive, precision-engineered mold core is a premier example of JST Mold’s expertise in monolithic (one-piece) technical tooling. Machined directly from a solid block of premium tool steel, this construction ensures maximum structural rigidity and eliminates the cumulative dimensional errors often found in multi-part assemblies. Specifically designed for high-tonnage production of complex automotive structural components—such as engine modules, internal frames, or technical housings—this tool provides our Tier-1 partners with absolute dimensional stability and repeatable precision across every manufacturing cycle.
Technical Mastery in Intricate 3D Tooling Design
At JST Mold, we specialize in high-complexity engineering that bridges the gap between ambitious digital designs and high-performance manufacturing. This core features a sophisticated array of asymmetrical cavities, precision-molded apertures, and integrated mounting seats, all processed via state-of-the-art high-speed 5-axis CNC milling and mirror EDM. The fine-machined technical finish visible across the massive steel surface highlights our control over surface quality and micron-level accuracy. Our engineering solutions focus on optimizing thermal management directly within the solid steel mass, effectively shortening cycle times and preventing part warping in complex deep-draw designs.
Personalized Customization and Guaranteed Fast Lead Times
In the fast-paced global supply chain, project agility and manufacturing reliability are your ultimate competitive advantages. JST Mold offers fully personalized customization for every project, providing expert Design for Manufacturing (DFM) analysis to optimize your large-format tooling for maximum output. Our integrated facility is optimized for operational speed; we offer rapid prototyping and a fast-track manufacturing model that guarantees industry-leading lead times for T1 samples. We are committed to on-time delivery and adhere strictly to IATF 16949 quality protocols, ensuring your product launch is seamless, reliable, and cost-effective.
Technical Specifications Overview
- Product Category: High-Precision Monolithic Mold Core / Large-Format Tool Insert
- Manufacturing Process: One-Piece Precision CNC Machining & High-Speed Mirror EDM
- Primary Application: Automotive Internal Structures, Industrial Technical Modules, Large Electronics
- Steel Material Grade: Premium Hardened Tool Steel (H13, S136, 1.2344, or NAK80)
- Precision Tolerance: Micron-level dimensional registration maintained within +/- 0.01mm
- Surface Finish: High-Grade Technical Finish / SPI Standard Polish Ready
- Service Model: Full Turnkey OEM/ODM Design, Tooling Fabrication, and Mass Production
- Delivery Performance: Rapid T1 Prototyping and Guaranteed Global Production Schedules
