Medical Needle Protector | High-Cavitation Precision Tooling
High-Precision Medical Syringe Needle Protectors | JST Mold Technical Solutions for Global Healthcare OEMs
Specifications
- Material:
- Medical-grade PP / PE (Biocompatible & Gamma-stable)
- Process:
- High-Speed Precision Injection Molding (Cleanroom-compatible execution)
- Mechanism:
- Multi-Cavity Stripper Plate / Synchronized Core-Pulling System
- Tolerance:
- +/- 0.02mm (Ultra-Strict Fitment & Concentricity Control)
- Surface Finish:
- SPI-A3 Mirror Polish / Cleanroom Grade Finish
- Mold Steel:
- S136 ESR / 1.2083 (Vacuum Hardened HRC 50-54 for Corrosion Resistance)
- Quality Control:
- ISO 13485 Compliant / CPK > 2.0 / 100% Dimensional CMM Validation
Product Description:
Ultra-precision medical tooling engineered for high-volume syringe needle protector production. Designed for high-cavitation efficiency and rapid cycle times while maintaining strict flash-free safety standards and perfect concentricity. Features optimized multi-circuit cooling and cleanroom-grade components to ensure long-term production reliability and chemical resistance in global healthcare OEM environments.
Engineering Excellence for the Global Medical Market

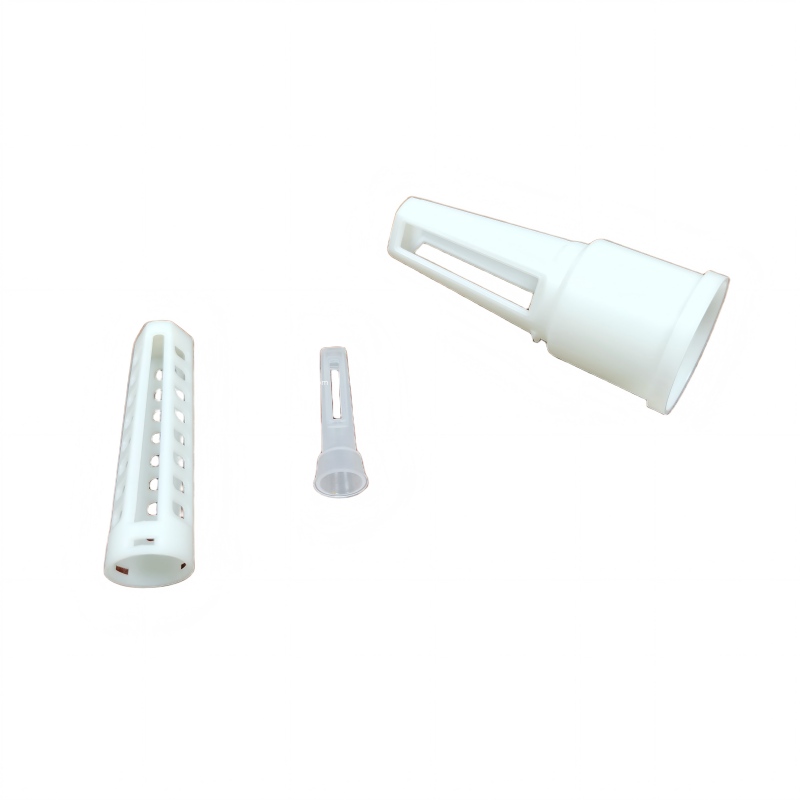

This set of high-precision needle protectors and syringe caps is a definitive showcase of JST Mold’s ability to meet the stringent quality and safety requirements of the German medical industry. Engineered for critical injection systems, these components feature complex vented geometries and thin-wall structures designed for optimal protection and gas sterilization efficiency. We specialize in providing global medical Tier-1 suppliers with high-performance plastic solutions that demand absolute biological safety, dimensional accuracy, and flawless technical finishes.
Technical Mastery in Medical-Grade Injection Molding
At JST Mold, we understand that medical components allow zero margin for error. These syringe protectors involve complex mold designs with high-cavitation potential and intricate internal cores. Our technical team utilizes advanced Mold Flow simulation to ensure perfect material distribution in the thin-walled slotted sections, preventing flashes or air traps. Every part is manufactured using medical-grade resins (such as medical-grade PP or PE) that are non-toxic and biocompatible. Our engineering solutions focus on optimizing draft angles and parting lines to ensure seamless, high-speed automated assembly in pharmaceutical production lines.
Mass Production Efficiency and Guaranteed Fast Delivery
In the healthcare sector, reliability and speed define your competitive edge. JST Mold offers a streamlined turnkey workflow from initial DFM (Design for Manufacturing) analysis to high-volume mass production. Our in-house precision tooling facility is optimized for the rapid development of multi-cavity medical molds, providing a fast-track process for T1 samples and guaranteed lead times for final delivery. We are committed to on-time delivery and strictly adhere to the highest international quality standards, empowering our partners to launch their life-saving medical products with total confidence in their global supply chain.
Technical Specifications Overview
- Product Category: Precision Medical Injection Components / Needle Protectors
- Primary Application: Syringe Safety Caps, Medical Sterilization Vents, Diagnostic Tools
- Manufacturing Process: High-Precision Medical Injection Molding
- Material Compatibility: Medical-Grade Polypropylene (PP), PE, or High-Clarity Polymers
- Engineering Features: Vented/slotted safety design, precision-fit conical interfaces
- Precision Tolerance: Micron-level dimensional stability within +/- 0.01mm
- Safety Compliance: Biocompatible resins and cleanroom-compatible manufacturing
- Service Model: Full Turnkey OEM/ODM Design, Tooling, and Mass Production
- Delivery Performance: Rapid Prototyping and Fast-Track Global Delivery Schedules
