The Mechanics of Precision: Engineering Absolute Straightness in Long-Stroke Components

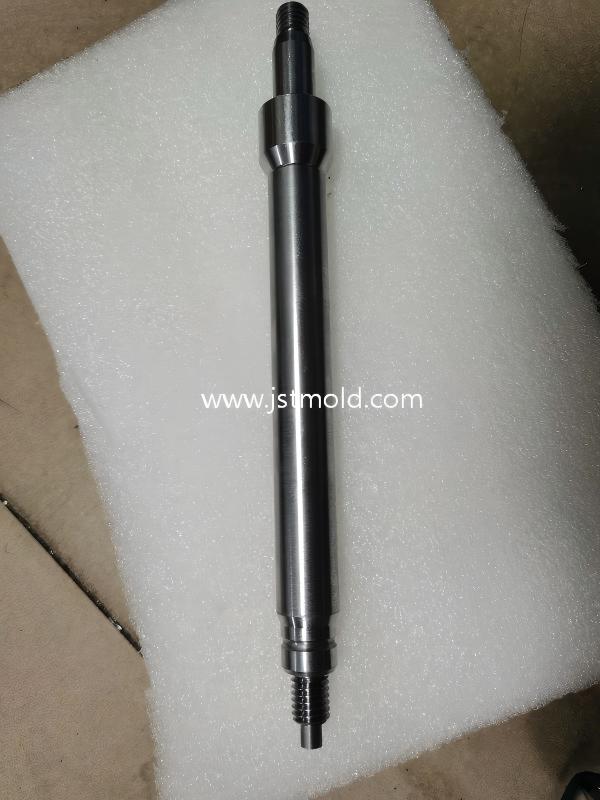

In the world of high-speed rotation and linear motion, the integrity of a central shaft determines the reliability of the entire system. This precision-machined stainless steel shaft from JST Mould is a premier example of our technical mastery in long-format, multi-step turning. Designed for critical applications in the medical, aerospace, and high-end automotive sectors—where components serve as drive spindles, actuator shafts, or precision pivots—this part demands absolute longitudinal straightness and micron-level concentricity. We specialize in producing technical shafts that minimize run-out and vibration, ensuring silent and efficient mechanical performance.
Technical Mastery & Advanced Machining Innovations
Precision Stepped Turning Excellence:
- Each shaft features multiple precision-turned diameters with seamless transitions. JST Mould utilizes advanced Swiss-type CNC lathes and multi-axis turning centers to maintain tolerances within +/- 0.005mm across the entire length, ensuring a perfect press-fit into bearings and housings.
High-Integrity Thread Engineering:
- The component is engineered with high-accuracy male threads at both ends. Our technical process ensures perfect thread pitch and lead consistency, facilitating secure mechanical fastening and high-torque reliability in demanding industrial environments.
Optical-Grade Surface Integrity:
- Despite the low-light photography, the deep reflectivity highlights an optical-grade mirror finish (Ra < 0.1μm). This ultra-smooth surface is critical for reducing seal wear and friction in high-frequency motion control systems, significantly extending the maintenance intervals of your assemblies.
Premium Stainless Steel Material Science:
- We offer personalized customization for high-performance alloys, including 304, 316L, and 17-4 PH Stainless Steel. These materials are chosen for their exceptional tensile strength and superior resistance to chemical corrosion and thermal stress.
The JST Mould Strategic Partner Advantage: Customization, Speed, and Reliability
Engineering Consultancy & DFM Leadership:
- We act as your R&D partner, providing in-depth Design for Manufacturing (DFM) analysis to optimize shaft geometry for maximum rigidity and cost-effective mass production.
Fast-Track Prototyping & Lead Times:
- We understand the urgency of vehicle and device launch milestones. JST Mould offers a streamlined manufacturing workflow that delivers high-precision T1 samples and production-ready technical shafts with industry-leading speed.
Scalable Global Quality Compliance:
- Operating under strict IATF 16949 quality protocols, our facility delivers zero-defect components verified by 3D CMM and laser scanning inspection. We provide full material certifications and dimensional reports, ensuring JST Mould remains your most trusted partner in the high-tech supply chain.
Quick Technical Performance Specs
Component Category: Precision CNC Turned Shaft / Threaded Spindle / Drive Pin
Application Industry: Automotive Actuators, Medical Pump Shafts, Aerospace
Fasteners
Manufacturing Process: Precision Swiss-Type Turning, Multi-Step Machining, Mirror Polishing
Material Compatibility: Stainless Steel 304, 316L, 17-4 PH, 440C (Hardened)
Accuracy Level: Micron-level dimensional registration within +/- 0.005mm
Surface Finish: SPI A-1 Mirror Polish / Low Ra Roughness Finish
Service Model: Full OEM/ODM Technical Component Fabrication and Global Export
Delivery Performance: Rapid T1 Prototyping and Fast-Track Production Schedules
