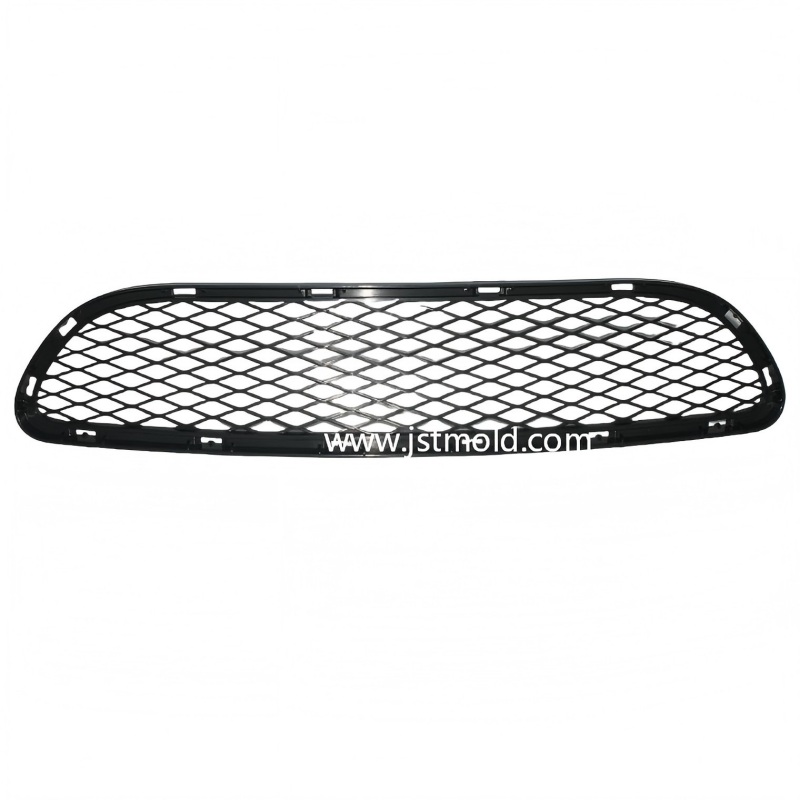

Automotive Front Grille | High-Aesthetic Mesh Precision
High-Precision Automotive Front Grille Mesh Injection Molding | JST Mold Technical Solutions
Specifications
- Material:
- ABS / ASA / PC+ABS (Automotive Exterior Grade, UV Resistant)
- Process:
- Large-Scale Injection Molding (Multi-Point Sequential Hot Runner)
- Mechanism:
- Complex Synchronized Ejection / Specialized Lifter System
- Tolerance:
- +/- 0.15mm (Critical Clip-on Fitment & Gap Control)
- Surface Finish:
- High-Gloss Black (SPI-A2) / OEM Technical Texture
- Mold Steel:
- 1.2738HH / 718H (Hardened HRC 34-38 for Scale Stability)
- Quality Control:
- MoldFlow Knit-Line Optimization / CMM Clip-Position Validation
Product Description:
High-aesthetic automotive front grille mesh engineered for premium exterior systems requiring zero-defect surface quality. Features advanced sequential valve gating to eliminate visible weld lines across the intricate honeycomb structure. Designed for high-volume production stability with a focus on rigid clip-on fitment precision and long-term UV-stable integrity in Tier-1 environments.
Mastering the Complexity of Automotive Aerodynamics and Aesthetics
This precision-engineered radiator grille mesh is a showcase of JST Mold's advanced capabilities in thin-wall injection molding for the global automotive sector. Front grilles are critical "Class-A" surface components that define a vehicle's brand identity while ensuring optimal airflow for engine cooling. At JST Mold, we specialize in manufacturing complex, large-format mesh structures that demand absolute dimensional stability and a flawless industrial finish to meet the rigorous safety and aesthetic standards of Tier-1 automotive suppliers.
Engineering Innovations in Intricate Mesh Tooling
Producing a high-definition diamond or honeycomb pattern across a large surface area presents significant technical challenges, including material flow balance and the prevention of warping. JST Mold utilizes sophisticated Mold Flow simulation and precision cooling layouts to ensure 100% filling of every thin-wall section without defects like silver streaks or air traps. This component features integrated peripheral snap-fits for seamless assembly, demonstrating our mastery in technical mold design. We offer personalized customization for automotive resins such as UV-resistant ASA, high-impact ABS, or PC/ABS blends, ensuring long-term durability in extreme outdoor environments.
Mass Production Efficiency and Fast Lead Time Guarantee
In the highly competitive automotive market, speed-to-market is the ultimate advantage. JST Mold offers a streamlined turnkey workflow, moving your project from initial 3D design to high-volume mass production with industry-leading efficiency. Our in-house precision tooling facility is optimized for rapid prototyping, delivering high-quality T1 samples with a guaranteed fast turnaround. We are committed to on-time delivery and adhere strictly to IATF 16949 quality protocols, providing a reliable, high-speed supply chain that empowers our global partners to launch new vehicle programs with total confidence.
Technical Specifications Overview
- Product Category: Automotive Front Grille Mesh / Radiator Vent Component
- Primary Application: Passenger Vehicles, Commercial Trucks, Electric Vehicle (EV) Cooling
- Manufacturing Process: High-Precision Thin-Wall Injection Molding
- Material Versatility: ASA, ABS, PC/ABS, or Reinforced Polypropylene (Tailored to OEM)
- Engineering Features: Intricate honeycomb/diamond geometry, integrated assembly snap-fits
- Precision Tolerance: Strict dimensional control within +/- 0.01mm
- Service Model: Full Turnkey OEM/ODM Design, Tooling, and High-Volume Production
- Delivery Performance: Rapid T1 Prototyping and Fast-Track Mass Production Schedules
