Injection Molding
Automotive Interior Panel | 2-Cavity Mirrored Tooling

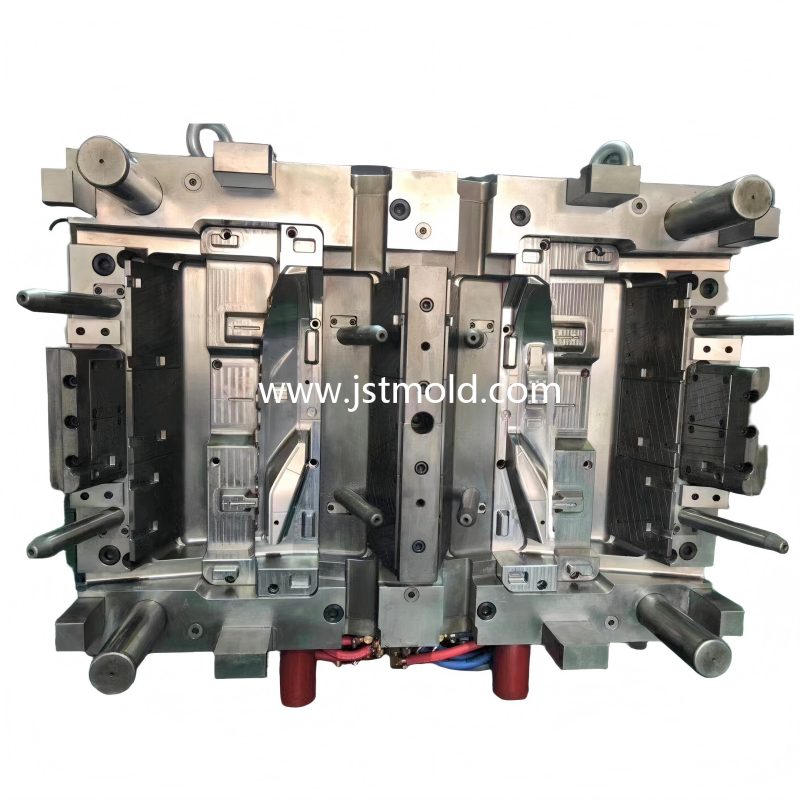

High-Precision 2-Cavity Mirrored Automotive Injection Mold | Custom Tooling for Interior Trim Panels by JST Mold
Specifications
- Material:
- PC+ABS / PP+Talc / ABS (Automotive Grade)
- Process:
- Precision Injection Molding (L/R Mirrored Synchronization)
- Mechanism:
- Large-Stroke Side Slides / Precision Lifter System
- Tolerance:
- +/- 0.15mm (Critical Gap & Flush Control)
- Surface Finish:
- VDI 3400 Ref. 27-30 / OEM Grain Texture
- Mold Steel:
- 1.2738HH / 1.2311 (Pre-hardened HRC 34-38)
- Quality Control:
- Gauge R&R / CPK > 1.67 / Full Dimensional CMM Report
Product Description:
High-performance automotive interior mold designed for mirrored part production with optimized filling balance. Features a robust slide-and-lifter architecture to handle complex geometry while maintaining parting line integrity. Engineered for high-volume durability and perfect grain consistency, ensuring seamless integration into Tier-1 automated assembly lines.
Engineering Mastery in Symmetrical Automotive Components
This sophisticated 2-cavity mirrored injection mold is a premier example of JST Mold’s expertise in developing high-efficiency "Family Mold" solutions for the global automotive industry. Specifically designed for producing symmetrical left and right-hand interior components—such as pillar trims, door panel inserts, or seat structural modules—this tooling ensures that matched pairs are manufactured with identical dimensional stability and color consistency. We specialize in providing Tier-1 automotive suppliers with complex tooling that manages the dual challenges of deep-draw geometry and high-aesthetic surface requirements.
Technical Innovation in Complex Mechanism Design
At JST Mold, we don't just build molds; we engineer high-performance industrial systems. This tool features a complex array of precision sliders and angled lifters, engineered to handle intricate undercuts and internal snap-fit features seamlessly. Utilizing advanced 5-axis CNC machining and mirror EDM, we maintain micron-level tolerances across the entire mold surface. Our technical focus includes an optimized conformal cooling layout, ensuring rapid heat dissipation and uniform thermal management, which prevents warping and achieves industry-leading cycle times for high-volume mass production.
Personalized Customization and Guaranteed Fast-Track Delivery
We understand that time-to-market and reliability are critical for vehicle program launches. JST Mold offers personalized customization for every project, providing comprehensive Design for Manufacturing (DFM) analysis and Mold Flow simulations to ensure a "right-first-time" production outcome. Our integrated facility is optimized for operational speed, allowing us to offer rapid prototyping and a guaranteed fast turnaround for T1 samples. We are committed to on-time delivery and strictly adhere to IATF 16949 quality protocols, providing a robust and agile supply chain partner for your most demanding automotive molding programs.
Technical Specifications Overview
- Product Category: 2-Cavity Mirrored Automotive Injection Mold
- Primary Application: Car Interior Trims (LH/RH), Symmetrical Door Panels, Structural Brackets
- Mechanism Type: Multi-Directional Sliders, Angled Lifters, and Core-Pulling Systems
- Material Compatibility: PC/ABS, High-Impact PP, PA66+GF, or Custom Engineering Blends
- Steel Material: Premium Hardened Tool Steel (H13, S136, 1.2344, 718H)
- Precision Tolerance: Micron-level dimensional registration within +/- 0.01mm
- Service Model: Full Turnkey OEM/ODM Design, Tooling, and High-Volume Production
- Delivery Performance: Rapid T1 Prototyping and Fast-Track Global Production Schedules
