Mould components

Technical Core | Monolithic High-Precision

Precision Engineering Spotlight: High-Performance Injection Mold Core for Technical Automotive Assemblies | JST Mold Solutions

Specifications

Target Material:
PA66+GF / PBT / PPS (High-Performance Engineering Resins)
Tooling Standard:
SPI Class 101 (1M+ Cycles, Export Grade)
Mold Steel:
1.2344 ESR / S136 (Hardened HRC 50-54)
Machining:
High-Speed CNC / Precision EDM / Mirror Polishing
Tolerance:
+/- 0.02mm (Critical Dimension Stability)
Surface Finish:
SPI-A3 / VDI 3400 Ref. 21
Quality Control:
100% CMM Validation / Micro-Measurement Report

Product Description:

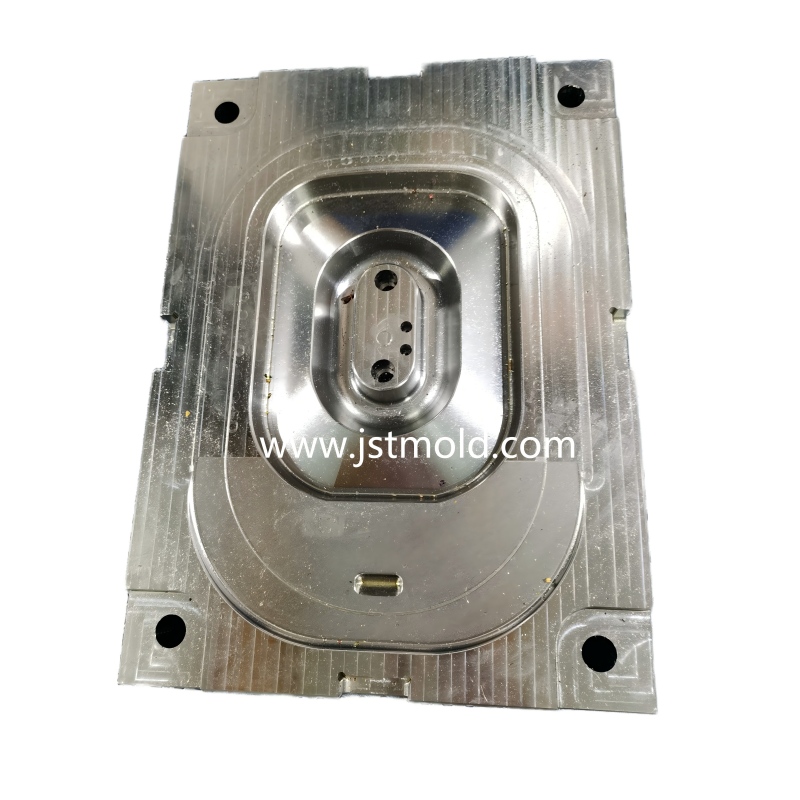

High-precision monolithic mold core engineered for complex automotive technical assemblies. Designed to eliminate stack-up errors and ensure superior thermal conductivity, this tooling maintains ultra-tight tolerances and consistent parting line integrity across high-volume automated production runs.



The Engineering Foundation for Zero-Defect Technical Parts


This high-precision mold core insert from JST Mold represents a masterclass in modern technical tooling. Designed specifically for the Tier-1 automotive and electronics sectors, this tool is engineered to produce functional components requiring extreme dimensional stability and intricate internal features—such as sensor housings, technical fasteners, or internal module brackets. At JST Mold, we focus on the intersection of robust mechanical strength and micron-level precision, ensuring that every part ejected from our tools fits perfectly into your complex automated assembly lines.



Advanced Manufacturing & Technical Mastery

  • Micron-Level CNC Pathing: The high-quality technical finish and visible CNC machining paths demonstrate our total control over multi-level 3D geometries. This ensures that critical mounting bosses and internal alignment features are accurate to within +/- 0.005mm, eliminating assembly interference and project risk.

  • Integrated Multi-Functional Features: This insert is designed to mold a variety of complex features in a single shot, including precision screw apertures and structural reinforcement ribs. By integrating these details into a monolithic core design, we maximize part rigidity while reducing the total cost of production for our global partners.

  • Premium Hardened Tool Steel Resilience: Manufactured from certified tool steels (such as S136, 1.2344, or NAK80) hardened to HRC 48-52. This material choice guarantees a production life exceeding 1,000,000 high-pressure cycles, maintaining sharp parting lines and a flawless technical finish throughout the tool's lifecycle.

  • Strategic Thermal Stability: We utilize advanced internal cooling layouts strategically mapped to the core’s geometry. This ensures rapid, uniform heat dissipation, which is critical for preventing part warping and achieving industry-leading cycle times in high-volume production environments.



Why Global OEMs Choose JST Mold as Their Strategic Partner

  1. Personalized Engineering Customization: Every project begins with a comprehensive Design for Manufacturing (DFM) analysis. We tailor our tooling solutions to your specific resin requirements and machine specifications, ensuring a seamless path from CAD to mass production.
  1. Fast Lead Time & Guaranteed Delivery: We understand the urgency of the global automotive supply chain. JST Mold offers a "fast-track" tooling model, delivering rapid T1 samples and strictly adhering to project milestones to ensure your product launch stays on track.
  1. Tier-1 Quality Standards: Every insert and core undergoes a rigorous 3D CMM inspection and full validation trial. We strictly follow IATF 16949 and ISO 9001 protocols, providing our partners with a reliable, high-tech manufacturing foundation they can trust.



Technical Specifications Overview

  • Component Category: High-Precision Technical Mold Core Insert
  • Application Industry: Automotive Electronics, Industrial Systems, Medical Assemblies
  • Manufacturing Process: High-Speed CNC Milling, Precision Mirror EDM, Micron-Level Grinding
  • Steel Material Grade: Premium Hardened Tool Steel (H13, S136, 1.2344, or NAK80)
  • Accuracy Level: Micron-level dimensional registration within +/- 0.005mm to 0.01mm
  • Surface Quality: Fine Technical Machining Finish / Technical Texture Ready
  • Mold Life Rating: Designed for High-Volume Production (1,000,000+ Shots)
  • Service Model: Full Turnkey OEM/ODM Design, Tooling, and Mass Production Support
