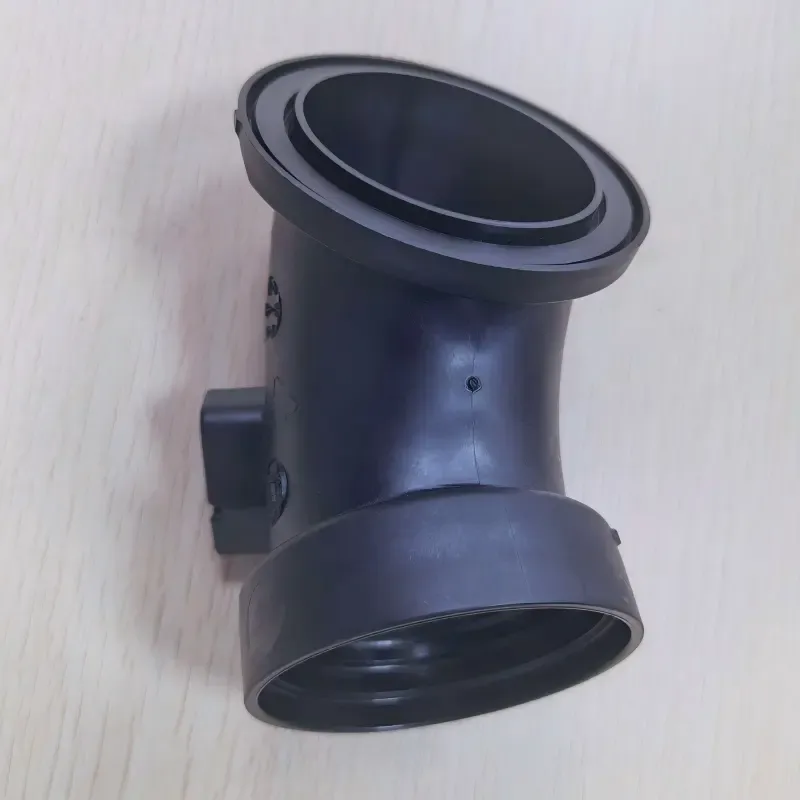

Elbow Pipe Fitting | Internal Undercut Molding
This high-performance plastic elbow fitting is designed for mission-critical fluid management systems. It features a full-circumference internal undercut that requires advanced tooling solutions to ensure seamless ejection and pressure-rated sealing integrity.
Specifications
- Material:
- PA66+30%GF / POM / High-Impact PP
- Process:
- Precision Injection Molding with Collapsible Core
- Undercut Solution:
- Multi-stage Collapsible Core (缩柯)
- Tolerance:
- +/- 0.05mm on critical diameters
- Surface Finish:
- SPI-C1 (Technical Matte)
- Mold Steel:
- 1.2344 ESR / H13 (HRC 48-52)
- Pressure Rating:
- Designed for high-pressure fluid environments
- Quality Control:
- 100% CMM verification of internal dimensions
Engineering Overview:
The core challenge lies in the 360-degree internal undercut; JST Mould utilizes precision collapsible cores (缩柯) to allow for damage-free release. This eliminates the need for multi-part assembly, reducing potential leak paths and improving structural housing strength.
Technical Specifications & DFM Insights:
We optimized the collapsing sequence to prevent stress whitening on the internal sealing surface. The mold utilizes high-wear-resistant steel to maintain sharp parting lines on the curved geometry, ensuring a flash-free finish for airtight connections.
Why JST Mould?
We specialize in "impossible" ejection geometries. By integrating complex collapsible core technology, JST Mould helps Tier-1 clients achieve lower cycle times and superior part consistency for high-pressure applications.
Application Fields:
Automotive cooling systems, high-end HVAC plumbing, and industrial fluid transport connectors.
