Structural Component Mold | Large-Format Precision

Technical Briefing: Custom Deep-Draw Injection Molded Industrial Enclosure for Electrical & Infrastructure Systems

Specifications

Target Material:
PP+LGF / PC-ABS (Structural Engineering Grade)
Tooling Grade:
SPI Class 101 (1M+ Cycles, Export Grade)
Mold Steel:
1.2738HH / 1.2344 (Pre-hardened HRC 34-38)
Gating System:
Multi-Point Sequential Valve Hot Runner
Tolerance Control:
+/- 0.15mm (Large-Scale Profile Accuracy)
Cooling Strategy:
High-Flow Thermal Circuits for Rapid Cycle Times
Quality Protocol:
PPAP Level 3 / 100% CMM Scan / Fitment Validation

Product Description:

Engineering-grade large-format mold optimized for complex automotive structural modules. Features a high-rigidity structure and sequential gating system to ensure zero-weld line aesthetics and superior structural integrity. Designed for long-term dimensional stability and high-volume production efficiency in Tier-1 environments.



Executive Overview: Bridging High-Volume Production with Precision Engineering

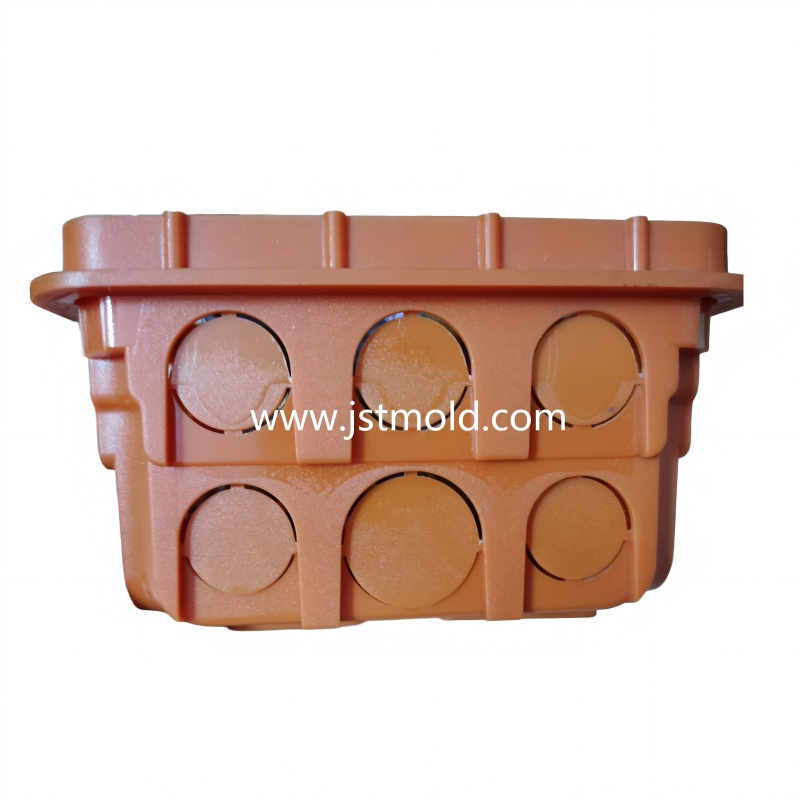

In the demanding sectors of industrial electrical systems and infrastructure, the reliability of protective housings is paramount. This custom-engineered junction box from JST Mold represents a masterclass in deep-draw injection molding. Designed for technical applications requiring multiple cable entry points and high mechanical impact resistance, this component demonstrates our ability to deliver robust, zero-defect solutions for global Tier-1 industrial suppliers. At JST Mold, we don’t just build molds; we engineer high-performance assets that ensure your project’s long-term operational success.



Core Engineering Advantages & Design Innovations

  • Precision-Engineered Multi-Port Knockouts: This housing features a sophisticated array of integrated knockout ports. Our technical mastery ensures that these thin-wall sections are molded with zero flash and consistent wall thickness, allowing for clean, effortless cable entry during field installation.

  • Reinforced Structural Architecture: The exterior is designed with high-density vertical reinforcement ribs. This engineering choice maximizes the structural rigidity of the enclosure under high-pressure environments while maintaining a lightweight profile, typical of advanced automotive and industrial grade components.

  • Advanced Deep-Draw Molding Mastery: Achieving uniform density in deep-cavity parts like this is a challenge we meet through optimized gating and advanced Mold Flow simulation. This prevents vacuum-induced warping and ensures that every part ejected meets micron-level dimensional stability.

  • High-Performance Material Science: We offer personalized customization for material selection, utilizing specialized engineering resins such as flame-retardant PC/ABS, UV-stabilized Polypropylene, or reinforced Polyamides to withstand harsh industrial and outdoor environments.



JST Mold Strategic Commitment: Personalized, Fast, and Reliable


  1. Accelerated Market Launch: JST Mold specializes in "Fast-Track" project management. Leveraging our in-house precision tooling facility, we offer rapid T1 sample delivery and guaranteed lead times, helping you move from digital CAD design to high-volume mass production ahead of the competition.

  1. Bespoke Technical Customization: From custom Pantone color matching to specialized surface texturing and integrated branding/logo engraving, we provide a fully personalized manufacturing service tailored to your brand’s specific technical and aesthetic standards.

  1. Industry-Leading Quality Assurance: Every tool and part produced is subject to rigorous 3D CMM inspection and IATF 16949 compliant validation protocols. We ensure a "right-first-time" approach that minimizes downtime and maximizes your Return on Investment (ROI).



Technical Specifications At-a-Glance

  • Component Category: Precision Industrial Enclosure / Electrical Junction Box
  • Primary Application: Electrical Infrastructure, Automotive Control Housings, Industrial Module Protection
  • Manufacturing Process: Technical Deep-Draw Injection Molding
  • Feature Highlight: Integrated Multi-Port Knockouts & Structural Reinforcement Ribs
  • Material Compatibility: FR-ABS, PC/ABS, Reinforced PP, or Nylon (PA66)
  • Precision Tolerance: +/- 0.015mm across deep-draw dimensions
  • Mold Life Expectancy: Rated for High-Volume Production (500k to 1,000,000+ Shots)
  • Service Model: Full Turnkey OEM/ODM Solution (Tooling + Mass Production)
