2K EV Charging Handle Injection Mold | Overmolding Tooling
Custom 2K EV charging handle injection mold for rigid-soft overmolding, with DFM review, shut-off control, sealing, venting and dimensional validation.
Specifications
- Material:
- Rigid engineering plastic + soft overmold material, according to project requirements
- Process:
- 2K / Two-Shot Injection Molding or Overmolding
- Mechanism:
- Tooling concept defined after DFM and product structure review
- Tolerance:
- According to drawing and critical interface requirements
- Surface Finish:
- Texture or surface finish according to customer specification
- Mold Steel:
- Selected according to resin, production volume, surface and mold-life requirements
- Quality Control:
- Dimensional, visual, bonding and functional validation as required by the project
Product Description:

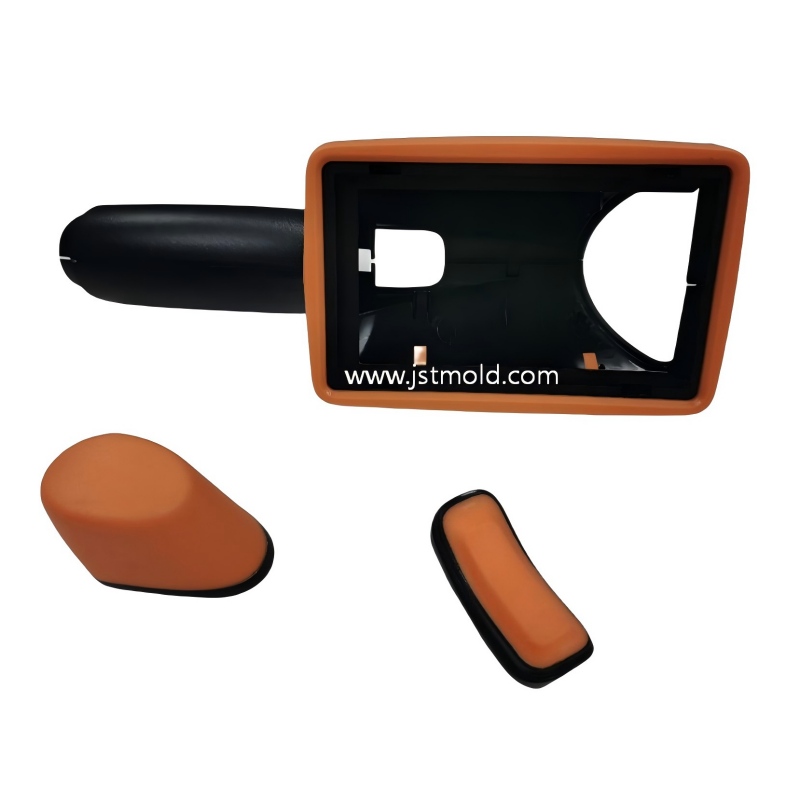

This 2K EV charging handle housing reference demonstrates the integration of a rigid structural body with soft overmolded areas for grip, sealing or other functional interfaces.
For this type of component, successful tooling depends on more than simply molding two materials. Important engineering considerations include first-shot dimensional stability, hard-soft interface design, shut-off accuracy, flash control, gate location, venting and final assembly requirements.
JST Mould supports similar EV and automotive 2K tooling projects from DFM review through mold manufacturing, trials and validation according to confirmed customer drawings, materials and production requirements.
Key Tooling Considerations for 2K EV Charging Handle Housings
A 2K charging handle housing typically combines a rigid substrate with a softer overmolded region.
The first-shot component must remain dimensionally stable so that the second-shot cavity can reproduce the intended hard-soft boundary consistently.
Key tooling considerations may include:
- First-shot shrinkage and warpage
- Positioning between molding stages
- Hard-soft material compatibility
- Shut-off and parting-line design
- Flash prevention
- Gate and flow strategy
- Venting
- Sealing and assembly interfaces
The exact tooling solution should be defined after reviewing the customer's CAD, resin requirements, production volume and functional specifications.
Hard-Soft Interface and Flash Control
One of the most important areas in a 2K overmolded housing is the boundary between the rigid substrate and the second material.
If the first-shot part deforms or does not locate consistently, the second-shot shut-off condition may change. This can lead to unstable overmold thickness, visible flash or inconsistent edge definition.
The mold therefore needs to control both the geometry of the shut-off area and the repeatability of the first-shot component.
Material compatibility should also be confirmed before tooling is finalized, particularly where bonding or sealing performance is functionally important.
DFM and Tooling Review Before Mold Manufacturing
Before mold construction, JST Mould can review the available product data to identify potential tooling risks.
The review may include:
- 2K molding feasibility
- Parting-line strategy
- Shut-off geometry
- Gate and runner concept
- Venting requirements
- Shrinkage and warpage risk
- Hard-soft interface design
- Critical dimensions
- Assembly requirements
- Mold life and production targets
Early clarification helps reduce avoidable mold changes after steel cutting.
What to Send for a 2K EV Charging Handle Mold Quote
For an initial tooling review, please provide:
- 3D CAD
- Available 2D drawings
- Rigid and soft material requirements
- Critical tolerances
- Surface or texture requirements
- Sealing or assembly requirements
- Annual production volume
- Expected mold life
- Injection molding machine information, if available
If some specifications are still under development, JST Mould can first review the available product data and advise what information should be confirmed before final tooling quotation.
For a detailed engineering discussion of hard-soft interfaces, sealing, flash control and tooling validation, see our EV Charging Handle Injection Mold Design Guide.
Need a 2K EV Charging Handle Mold Review?
If you are developing an EV charging handle, connector housing or other multi-material automotive component, send us your CAD and project requirements.
