High-Precision CNC Machined Mold Cavity Inserts for Large-Format Automotive Structures | Technical Tooling by JST Mould
The Engineering of Complexity: Transforming Digital CAD into Massive Production Assets
In high-end automotive and industrial manufacturing, large-format structural modules demand an elite level of tooling precision. This precision-machined mold cavity insert from JST Mould is a definitive showcase of our 5-axis CNC machining expertise. Designed for high-tonnage production of complex interior modules—such as dashboard carriers, door module substrates, or technical housings—this component handles the dual challenges of deep-draw geometry and multi-level dimensional stability. We specialize in producing technical inserts that ensure your high-volume programs operate with absolute consistency and zero mechanical drift.
As for the number “15704”:
That’s our project internal tracking number. It ensures that every piece of steel is traceable through our SAP/Quality system from the raw block stage to the final CMM report.
Technical Mastery & Manufacturing Innovation Highlights
Complex Multi-Level 3D Machining:
- The insert features a sophisticated array of horizontal and vertical steps, precision-milled to ensure micron-level registration across the entire profile. JST Mould utilizes advanced high-speed CNC pathing to achieve these features within +/- 0.01mm, ensuring that complex multi-part sub-assemblies fit perfectly within the final molded component.
Mastery of Non-Linear Parting Lines:
- The intricate edges and technical recesses demonstrate our mastery in managing complex parting surfaces. Our machining process ensures zero flash and high-durability sealing, even under the intense clamping forces of 1500T+ injection systems, significantly reducing secondary trimming costs for our partners.
Optimized Structural Rib & Mounting Integration:
- Every feature, from the narrow structural slots to the precision screw bosses, is engineered to provide maximum part rigidity while facilitating an efficient de-molding process. This "right-first-time" approach eliminates the risk of part drag or deformation during high-speed production cycles.
Premium Steel Selection for Long-Term ROI:
- Manufactured from certified high-grade tool steels (such as 1.2738H, 718H, or S136) and vacuum heat-treated to HRC 48-52. This material choice guarantees a production life exceeding 1,000,000 shots while maintaining flawless surface finishes against abrasive engineering resins.
JST Mould: Your Strategic Partner for Large-Scale Technical Projects
DFM-Led Engineering Consulting:
- We don't just cut steel; we consult on the entire manufacturing lifecycle. Our detailed Design for Manufacturing (DFM) analysis helps identify potential warping or flow issues before the tool is built, reducing total project risk.
Guaranteed Fast Lead Times for Global Export:
- We understand the urgency of vehicle launch milestones. JST Mould offers a streamlined "Fast-Track" manufacturing workflow, delivering high-precision technical inserts and replacement parts with industry-leading speed to our partners in Europe and North America.
Verified Quality & Data Traceability:
- Every massive insert undergoes rigorous 3D CMM inspection. We provide full material certifications and dimensional data reports, ensuring JST Mould remains the most reliable source for global OEMs seeking technical manufacturing agility from China.

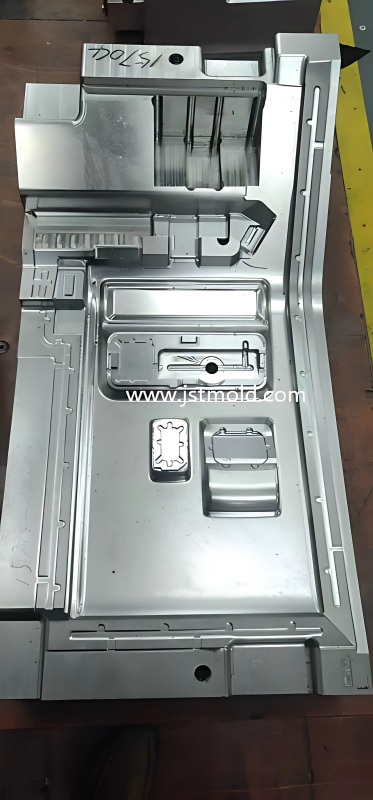

Raw finish inspection of technical insert on the assembly floor
Quick Technical Performance Specs
Component Category: Large-Format Precision Mold Cavity / Technical Tool Insert
Application Industry: Automotive Interiors, Large Industrial Housings, Structural Modules
Manufacturing Process: High-Precision 5-Axis CNC Milling, Mirror EDM, Precision Grinding
Steel Material Grade: Premium Hardened Tool Steel (H13, S136, 1.2738H, or 718H)
Precision Tolerance: Micron-level dimensional registration within +/- 0.01mm
Surface Finish: Fine Technical Machining Finish / Technical Texture Ready
Mold Life Rating: High-Volume Production Rating (1,000,000+ Shots)
Service Model: Full Turnkey OEM/ODM Design, Technical Tooling, and mass production support
SEO Search Tags (Long-Tail Focus)
Precision mold cavity insert, large CNC machined tool parts, JST Mould technical engineering, automotive structural mold maker, custom large-format plastic tooling, Tier-1 automotive supplier China, high-volume plastic manufacturing, custom technical mold factory, fast lead time injection molding, precision CNC mold machining, IATF 16949 mold maker.
Do you have specific venting requirements for the deep-draw rib areas? We’ve optimized the insert for air evacuation to prevent burn marks during high-speed molding.
