CNC Stainless Steel: Machining Precision Sensor Housings with Micron-Level Concentricity
Precision CNC machined stainless steel sensor housings. Micron-level tolerances and matte black oxidation for Tier-1 automotive applications.
Case Study: Precision CNC Machining
Title: Turnkey Engineering Excellence: Precision CNC Machined Stainless Steel Components
Executive Summary
At JST Mould (www.jstmold.com), our commitment to Tier-1 automotive and advanced industrial suppliers goes beyond world-class plastic injection tooling. To provide a complete Turnkey Manufacturing Solution, we offer elite CNC precision machining for critical structural components. This case study highlights a highly complex stainless steel housing engineered for a demanding international client. Featuring Micron-level tolerance control and a flawless custom surface treatment, this project demonstrates our rigorous quality control and comprehensive supply chain integration capabilities.

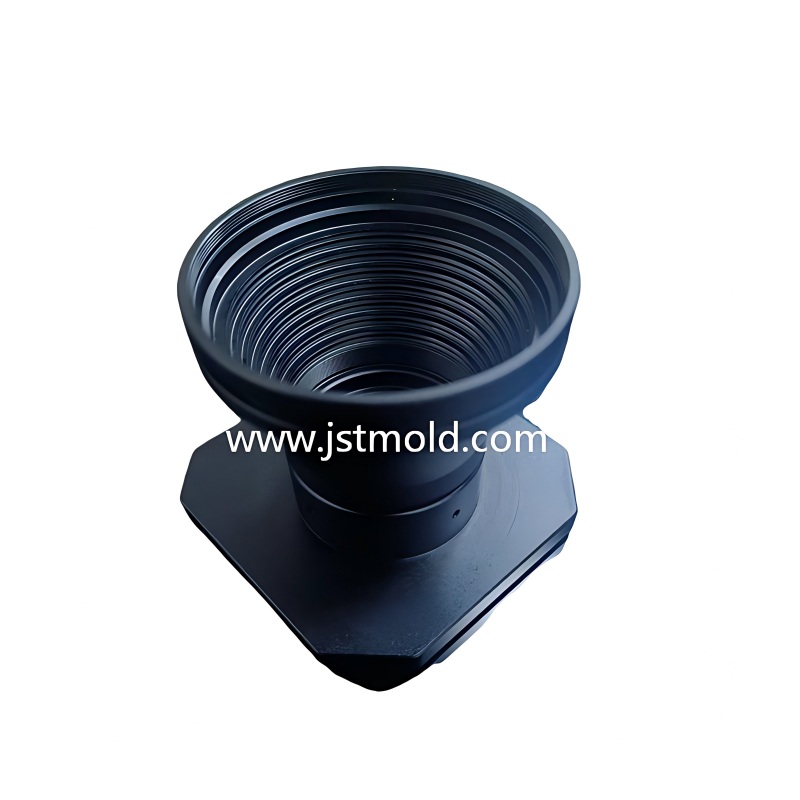

Precision Engineering: Flawless concentric threads for critical optical sensor housings.
Engineering Challenges & JST Mould Solutions
1. Multi-Axis CNC Machining of Hard Metals:
Machining high-grade stainless steel requires exceptional tool-path programming to prevent work-hardening and ensure dimensional stability. We successfully executed the intricate deep concentric internal threads and the precise octagonal base without a single compromise on the structural integrity, ensuring a perfect fit for the final sensor assembly.
2. Micron-Level Tolerance under Strict QC:
For optical and sensor housings, precision is paramount. Operating under our rigorous quality management system (aligned with IATF 16949 standards), every dimension—from the internal thread pitch to the external mounting flanges—underwent strict CMM inspection. Our commitment to quality ensures that every machined part perfectly matches the client's original engineering blueprint.
3. Premium Oxidation Surface Treatment:
The functional requirement called for a highly durable, non-reflective black surface. We managed a specialized black oxidation/anodizing-like treatment that not only provides superior anti-corrosion properties but also delivers an exceptionally uniform, matte aesthetic. The finish is of such premium quality that it is often visually mistaken for a high-end engineered polymer.
Technical Specifications
Project Type: Value-Added CNC Machining Services
Material: High-Grade Stainless Steel
Key Geometries: Deep Internal Concentric Threads, Octagonal Flange
Surface Finish: Custom Matte Black Oxidation Treatment
Tolerance: Micron-level Precision
Industry Application: Automotive Sensors, Optical Equipment Housings
Quality Assurance: 100% CMM Inspected, Turnkey Solution

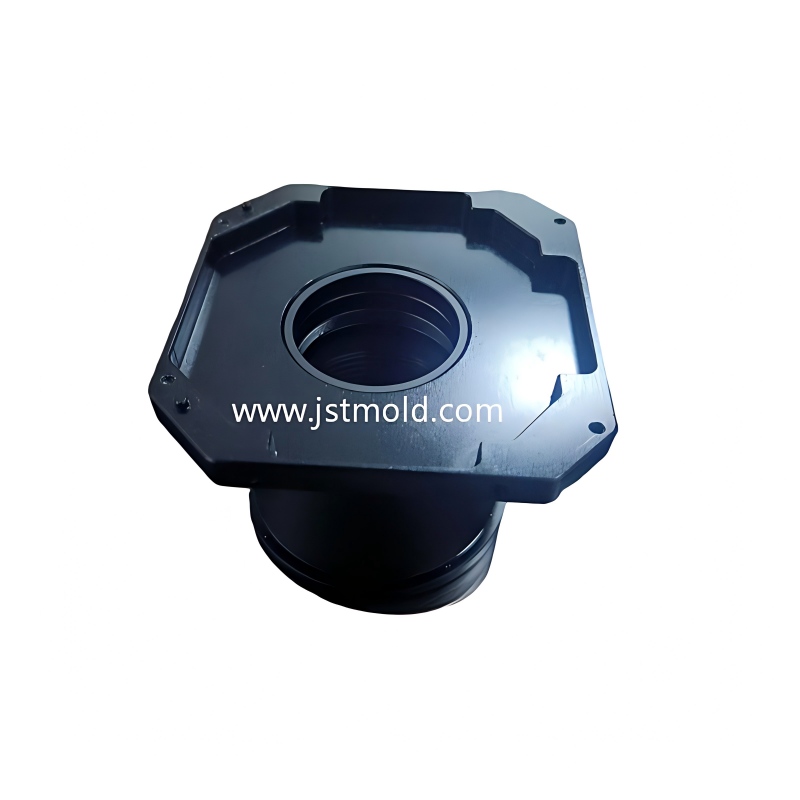

Design Complexity: 100% CMM inspected octagonal mounting flanges for perfect assembly fit.
Your Trusted Partner for Comprehensive Engineering
When you partner with JST Mould, you are not just getting a mold maker; you are gaining a highly integrated engineering partner. Whether you need complex injection-molded plastics or precision-machined metal internals, our quality control ensures your projects are delivered flawlessly.
Does your sensor assembly suffer from concentricity drift or work-hardening failures?
Machining high-grade stainless steel isn't just about cutting—it's about managing tool-path heat and stress. If your current vendor delivers deep internal threads that don’t align, your optical sensor ROI is already in the red.
At JST Mould, we bridge the gap between complex plastic housings and the precision metal internals that protect your electronics. Don’t settle for a "good enough" fit. Let our team execute a technical feasibility review for your next multi-axis project.
