PEEK Injection Molding: Mastering M12x1 Internal Threads for German Automotive Standards
Expert PEEK injection molding for magnet guides. Mastering M12x1 threads and +/-0.05mm tolerances under IATF 16949 standards for Tier-1 OEMs.

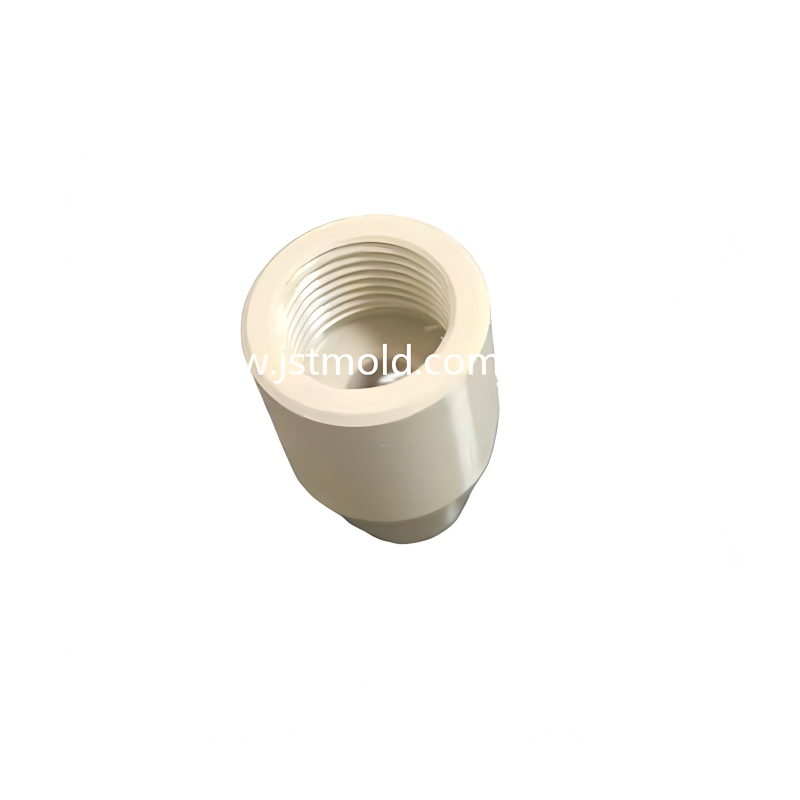

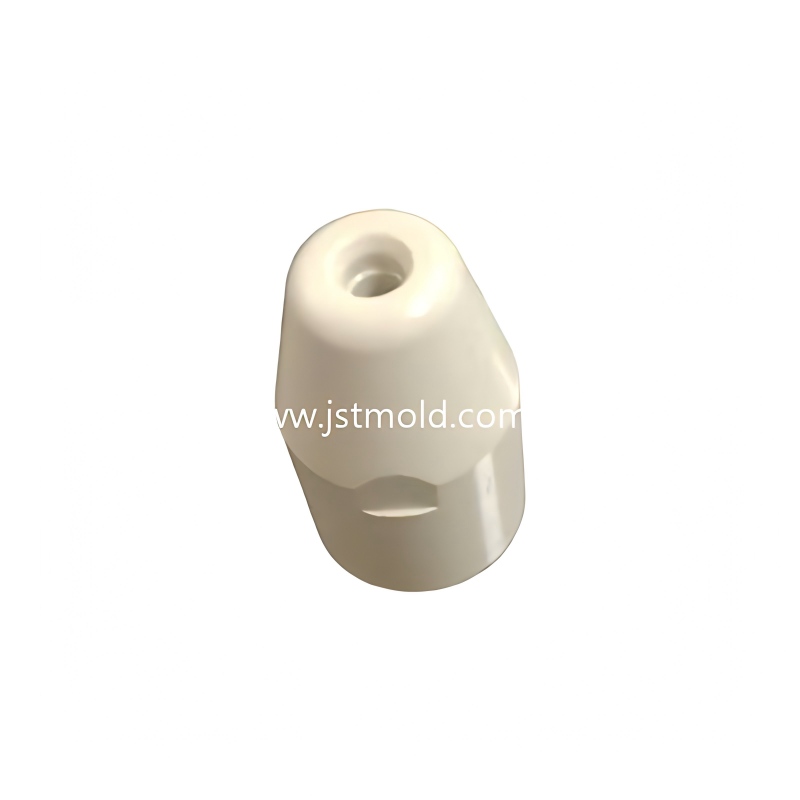

Case Study: PEEK part
Title: Custom PEEK Magnetführung Injection Molding: Micron-Level Precision for German Automotive Standards
High-Performance PEEK: Achieving flawless dimensional stability in 260°C+ molding environments.
Executive Summary
At JST Mould, we specialize in transforming high-performance polymers into ultra-precision components for Tier-1 automotive suppliers. This engineering case study highlights a recent OEM project for a highly demanding German client: a custom PEEK Magnetführung (Magnet Guide). Engineered to meet rigorous DIN standards, this component demonstrates our exceptional capability in high-temperature resin molding, complex internal threading, and Micron-level tolerance control.
Engineering Challenges & JST Mould Solutions
- High-Performance PEEK Processing: PEEK (Polyetheretherketone) offers outstanding mechanical strength and thermal stability but poses significant challenges in melt flow and shrinkage control. Through advanced DFM optimization and precise Conformal Cooling channel design in our tooling, we ensured uniform heat dissipation, eliminating warpage and achieving flawless dimensional stability.
- Complex Internal Threads & Undercuts: The blueprint demands an M12x1 internal thread coupled with a DIN76 Form D thread undercut. Utilizing our high-precision CNC machining centers and automated unscrewing mold mechanisms, we achieved perfect thread profiles without parting line flashes, ensuring seamless assembly for the magnetic core.
- Micron-Level Tolerance Assurance: German engineering leaves no room for error. The critical internal diameter required a strict Ø3.3 +0.05mm tolerance. Operating under our IATF 16949 certified quality management system, every batch undergoes rigorous CMM inspection to guarantee 100% compliance with ISO 2768-mH standards.
Technical Specifications
Project Type: OEM Custom Injection Molding
Part Name: Magnetführung (Magnet Guide / Sensor Housing)
Material: High-Grade PEEK (Polyetheretherketone)
Key Features: M12x1 Internal Thread, Rz 63 / Rz 16 Surface Finish
Tolerance Achieved: Micron-level (+0.05mm)
Industry Application: Automotive Sensors, Fluid Control Systems, Precision Automation
Quality Certification: IATF 16949 Compliant
Why Choose JST Mould for High-Performance Polymers?
From rapid prototyping to mass production efficiency, JST Mould guarantees fast turnaround times without compromising German-level precision. Our engineering team provides end-to-end solutions, ensuring your custom tooling projects are delivered on time, every time.
Complex Geometry: Precision M12x1 threads and undercuts with 100% IATF 16949 compliance.
Does your PEEK project suffer from dimensional drift or thread failure?
High-performance polymers aren't just expensive; they are unforgiving. If your mold maker doesn't understand PEEK rheology or thermal expansion at 140°C, your Tier-1 project is a ticking time bomb. At JST Mould, we specialize in the "Hard Stuff."
Let’s de-risk your program with a 3-point technical audit:
- Material-specific shrinkage verification (PEEK vs. reinforced PPS).
- Advanced thermal balance review (Conformal cooling logic).
- 100% CMM thread pitch validation.
